MF1018V-4 - SAW Filter

Description

This SAW filter for the transmitting RF circuit of digital mobile communication equipment operating at 940 MHz ~ 960 MHz.

1.

SMD package insures small size, lightweight.

Features

  • MF1018V-4.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MF1011B900Y Microwave power transistor Philipss
MF10 Universal Monolithic Dual Switched Capacitor Filter National
MF10 Kual Universal Switched Capacitor Filter Maxim Integrated Products
MF10-N MF10 Universal Monolithic Dual Switched Capacitor Filter (Rev. C) ETCTI
MF100C12F1 FRED Modules Jiangsu APT Semiconductor

Other Datasheets by Mitsubishi Electric

Part Number Description
MF1018S-1 SAW Filter
MF1018S-2 SAW Filter
MF1018S-3 SAW Filter
MF1018S-4 SAW Filter
MF1010S-1 SAW Filter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

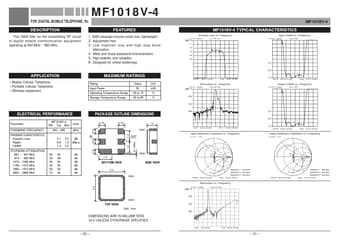

MF1018V-4 FOR DIGITAL MOBILE TELEPHONE, Rx MF1018V-4 FEATURES MF1018V-4 TYPICAL CHARACTERISTICS Insertion Loss vs. Frequency CH1 S21 log MAG 1 dB / REF 0 dB DESCRIPTION This SAW filter for the transmitting RF circuit of digital mobile communication equipment operating at 940 MHz ~ 960 MHz. 1. SMD package insures small size, lightweight. 2. Adjustment free. 3. Low insertion loss and high stop band attenuation. 4. Wide and sharp passband characteristics. 5. High stability and reliability. 6. Designed for reflow solderings. Input VSWR vs. Frequency CH1 S21 log MAG 500 m / REF 1 [dB] 0 –1 –2 –3 –4 –5 3.0 2.0 APPLICATION • Mobile Cellular Telephone • Portable Cellular Telephone • Wireless equipment Rating MAXIMUM RATINGS CENTER 948.000 000 MHz SPAN 100.000 000 MHz 1.0 CENTER 948.
