M75176P - RS-485 TRANSCEIVER

Description

Each of the M75176 to M75179 is a semiconductor IC with a built-in differential driver and a built-in differential receiver both of which meet the EIA standards RS-422A and RS-485.

Features

  • Common.
  • 5V single power supply.
  • With output control input (except M75179P) Driver.
  • 54Ω terminal resistor connectable between outputs.
  • High output impedance at power-OFF time.
  • Built-in output current limit circuit Receiver.
  • High input sensitivity (±200mV max. ).
  • Hysteresis input (50mV typ. ).
  • High input impedance (12kΩ min. ).
  • “H” emitted when input is open (failsafe function).

📥 Download Datasheet

📁 Similar Datasheet

  • M751 - Touch Tong Generator (SGS)
  • M751B1 - Touch Tong Generator (SGS)
  • M751D1 - Touch Tong Generator (SGS)
  • M750 - Counter (SGS)
  • M75010 - PHOTOELECTRIC SMOKE DETECTOR (Mosdesign)
  • M75012 - PHOTOELECTRIC SMOKE DETECTOR (Mosdesign)
  • M750B1 - Counter (SGS)
  • M750D1 - Counter (SGS)
  • M752 - Counter (SGS)
  • M75210 - COST-EFFECTIVE PHOTOELECTRIC SMOKE DETECTOR (MOSDESIGN)
Other Datasheets by Mitsubishi

Full PDF Text Transcription

Click to expand full text

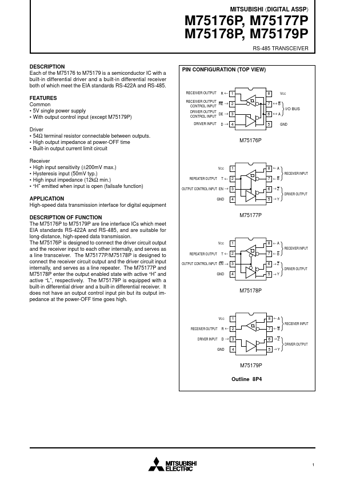

MITSUBISHI MITSUBISHI 〈DIGITAL 〈DIGITAL ASSP ASSP 〉 〉 M75176P, M75176P, M75177P M75177P M75178P, M75178P, M75179P M75179P RS-485 TRANSCEIVER RS-485 TRANSCEIVER DESCRIPTION Each of the M75176 to M75179 is a semiconductor IC with a built-in differential driver and a built-in differential receiver both of which meet the EIA standards RS-422A and RS-485. FEATURES Common • 5V single power supply • With output control input (except M75179P) Driver • 54Ω terminal resistor connectable between outputs. • High output impedance at power-OFF time • Built-in output current limit circuit Receiver • High input sensitivity (±200mV max.) • Hysteresis input (50mV typ.) • High input impedance (12kΩ min.
