M66332FP - FACSIMILE IMAGE DATA PROCESSOR

Product Overview

Mitsubishi

Datasheet Details

Part number	M66332FP
Manufacturer	Mitsubishi
File Size	336.31 KB
Description	FACSIMILE IMAGE DATA PROCESSOR
Datasheet	M66332FP Datasheet

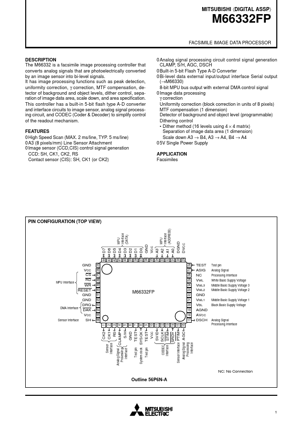

Additional preview pages of the M66332FP datasheet.

Product details

Description

The M66332 is a facsimile image processing controller that converts analog signals that are photoelectrically converted by an image sensor into bi-level signals.

Features

0 High Speed Scan (MAX. 2 ms/line, TYP. 5 ms/line) 0 A3 (8 pixels/mm) Line Sensor Attachment 0 Image sensor (CCD,CIS) control signal generation CCD: SH, CK1, CK2, RS Contact sensor (CIS): SH, CK1 (or CK2) 0 Analog signal processing circuit control signal generation CLAMP, S/H, AGC, DSCH 0 Built-in 5-bit Flash Type A-D Converter 0 Bi-level data external input/output interface Serial output (→M66330) 8-bit MPU bus output with external DMA control signal 0 Image data processing γ correction Unifor.
