M62720GP - VOLTAGE DETECTING / SYSTEM RESETTING IC

Description

The M62720GP is a voltage threshold detector designed for detection of a supply voltage and generation of a system reset pulse for almost all logic circuits such as microprocessor.

It also has extensive applications including battery checking, level detecting and waveform shaping circuits.

Features

  • Few external parts.
  • Low threshold operating voltage (Supply voltage to keep low-state at low supply voltage) …0.65V(TYP. ) at RL=22kΩ.
  • Wide supply voltage range ………… 1.5to 7.0V.
  • Sudden change in power supply has minimal effect on the ICs.
  • Wide.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M620 Platinum Resistance Temperature Detector Heraeus Sensor Technology
M62021FP System Reset-IC Renesas
M62021L System Reset-IC Renesas
M62021P System Reset-IC Renesas
M6206CP20 MCM6206CP20 Motorola

Other Datasheets by Mitsubishi Electric

Part Number Description
M62722 VOLTAGE DETECTING / SYSTEM RESETTING IC
M62722ML VOLTAGE DETECTING / SYSTEM RESETTING IC
M62722SL VOLTAGE DETECTING / SYSTEM RESETTING IC
M62723 VOLTAGE DETECTING / SYSTEM RESETTING IC
M62723ML VOLTAGE DETECTING / SYSTEM RESETTING IC

Full PDF Text Transcription

Click to expand full text

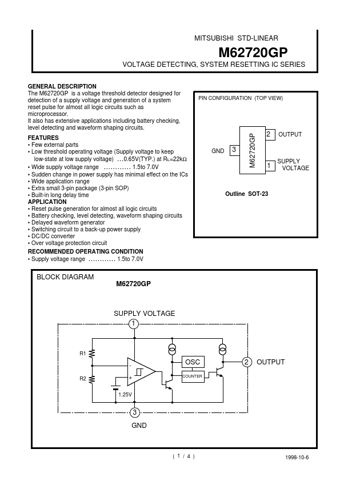

MITSUBISHI STD-LINEAR M62720GP VOLTAGE DETECTING, SYSTEM RESETTING IC SERIES GENERAL DESCRIPTION The M62720GP is a voltage threshold detector designed for detection of a supply voltage and generation of a system reset pulse for almost all logic circuits such as microprocessor. It also has extensive applications including battery checking, level detecting and waveform shaping circuits. FEATURES • Few external parts • Low threshold operating voltage (Supply voltage to keep low-state at low supply voltage) …0.65V(TYP.) at RL=22kΩ • Wide supply voltage range ………… 1.5to 7.
