M62707ML - VOLTAGE DETECTING / SYSTEM RESETTING IC

Product Overview

Mitsubishi

Datasheet Details

Part number	M62707ML
Manufacturer	Mitsubishi
File Size	21.16 KB
Description	VOLTAGE DETECTING / SYSTEM RESETTING IC
Datasheet	M62707ML Datasheet

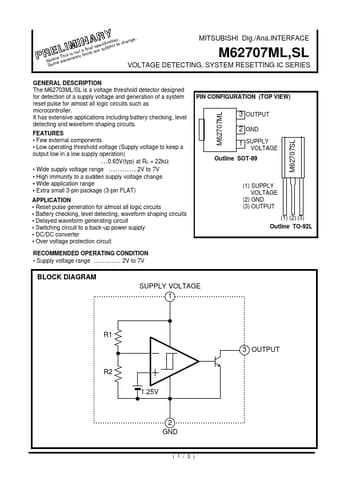

Additional preview pages of the M62707ML datasheet.

Product details

Description

The M62703ML/SL is a voltage threshold detector designed for detection of a supply voltage and generation of a system reset pulse for almost all logic circuits such as microcontroller.

Features

Few external components.
Low operating threshold voltage (Supply voltage to keep a output low in a low supply operation) …0.65V(typ) at RL = 22kΩ.
Wide supply voltage range ………… 2V to 7V.
High immunity to a sudden supply voltage change.
Wide.
