M62356P - 8-BIT 8CH D-A CONVERTER

Product Overview

Mitsubishi

📥 Download Datasheet

M62356P 8-BIT 8CH D-A CONVERTER by Mitsubishi - Datasheet Preview — Datasheet preview – M62356P

Datasheet Details

Part number	M62356P
Manufacturer	Mitsubishi
File Size	47.71 KB
Description	8-BIT 8CH D-A CONVERTER
Datasheet	M62356P Datasheet

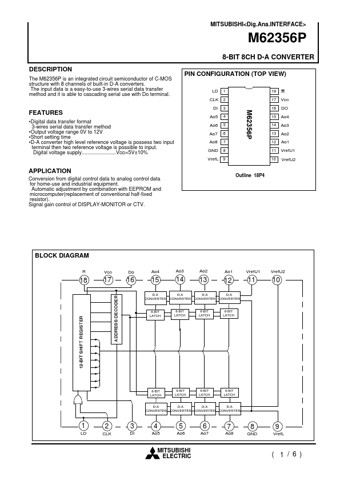

Additional preview pages of the M62356P datasheet.

Product details

Description

The M62356P is an integrated circuit semiconductor of C-MOS structure with 8 channels of built-in D-A converters.

Features

Digital data transfer format 3-wires serial data transfer method.
Output voltage range 0V to 12V.
Short setting time.
D-A converter high level reference voltage is possess two input terminal then two reference voltage is possible to input. Digital voltage supplyVDD=5V±10% DI Ao5 Ao6 Ao7 Ao8 GND VrefL 9.
