M62022L - VOLTAGE DETECTING/SYSTEM RESETTING IC

Description

The M62022 is a semiconductor integrated circuit resets logic circuits according to supply voltage.It is used with many types of circuits,including central processing units.

With the built-in delay circuit,delay time can be adjusted at the user’s option by externally adding capacitance.

Features

  • Requires only a few external components.
  • Ensures long delay time at low capacitance. e. g. Delay time is 100ms at 0.33µF.
  • Limit operating voltage.
  • is low. 0.6V standard(Resistance RL=22kΩ) (.
  • Minimum supply voltage at which output can be kept low. ).
  • Wide supply voltage range2~17V.
  • Highly resistant to rapid voltage fluctuation.
  • Wide.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M62021FP System Reset-IC Renesas
M62021L System Reset-IC Renesas
M62021P System Reset-IC Renesas
M620 Platinum Resistance Temperature Detector Heraeus Sensor Technology
M6206CP20 MCM6206CP20 Motorola

Other Datasheets by Mitsubishi Electric

Part Number Description
M62022FP VOLTAGE DETECTING/SYSTEM RESETTING IC
M62021 SYSTEM RESET IC WITH SWITCH FOR MEMORY BACK-UP
M62021FP SYSTEM RESET IC WITH SWITCH FOR MEMORY BACK-UP
M62021L SYSTEM RESET-IC
M62021P SYSTEM RESET-IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

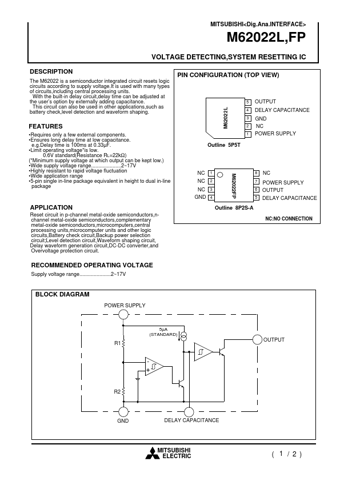

MITSUBISHI M62022L,FP VOLTAGE DETECTING,SYSTEM RESETTING IC DESCRIPTION The M62022 is a semiconductor integrated circuit resets logic circuits according to supply voltage.It is used with many types of circuits,including central processing units. With the built-in delay circuit,delay time can be adjusted at the user’s option by externally adding capacitance. This circuit can also be used in other applications,such as battery check,level detection and waveform shaping. PIN CONFIGURATION (TOP VIEW) 5 4 3 OUTPUT DELAY CAPACITANCE GND NC POWER SUPPLY FEATURES •Requires only a few external components. •Ensures long delay time at low capacitance. e.g.Delay time is 100ms at 0.33µF. •Limit operating voltage*is low. 0.
