M5M5V416BRT - 4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM

Product Overview

Mitsubishi

Datasheet Details

Part number	M5M5V416BRT
Manufacturer	Mitsubishi
File Size	110.36 KB
Description	4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM
Datasheet	M5M5V416BRT Datasheet

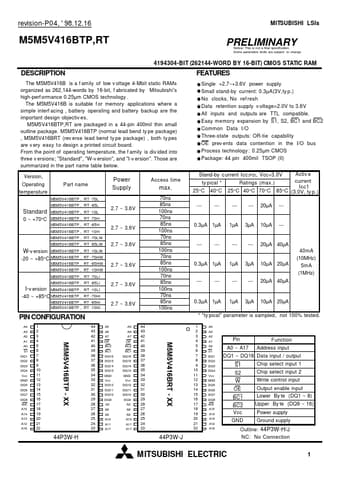

Additional preview pages of the M5M5V416BRT datasheet.

Product details

Description

The M5M5V416B is a f amily of low v oltage 4-Mbit static RAMs organized as 262,144-words by 16-bit, f abricated by Mitsubishi's high-perf ormance 0.25µm CMOS technology .

Features

Notice: This is not a final specification. Some parametric limits are subject to change 4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM Single +2.7~+3.6V power supply Small stand-by current: 0.3µA(3V,ty p. ) No clocks, No ref resh Data retention supply v oltage=2.0V to 3.6V All inputs and outputs are TTL compatible. Easy memory expansion by S1, S2, BC1 and BC2 Common Data I/O Three-state outputs: OR-tie capability OE prev ents data contention in the I/O bus Process technology : 0.25µm CMOS.
