M5M5V408BKV - 4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM

Product Overview

Mitsubishi

Datasheet Details

Part number	M5M5V408BKV
Manufacturer	Mitsubishi
File Size	162.78 KB
Description	4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM
Datasheet	M5M5V408BKV Datasheet

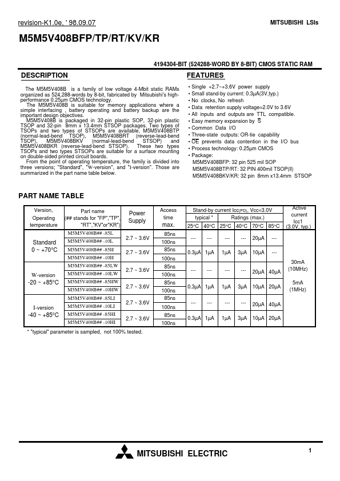

Additional preview pages of the M5M5V408BKV datasheet.

Product details

Description

The M5M5V408B is a family of low voltage 4-Mbit static RAMs organized as 524,288-words by 8-bit, fabricated by Mitsubishi's highperformance 0.25µm CMOS technology.

Features

Single +2.7~+3.6V power supply.
Small stand-by current: 0.3µA(3V,typ. ).
No clocks, No refresh.
Data retention supply voltage=2.0V to 3.6V.
All inputs and outputs are TTL compatible.
Easy memory expansion by S.
Common Data I/O.
Three-state outputs: OR-tie capability.
OE prevents data contention in the I/O bus.
Process technology: 0.25µm CMOS.
Package: M5M5V408BFP: 32 pin 525 mil SOP M5M5V408BTP/RT.
