Datasheet Details
| Part number | M5M5V216AWG-55LW |
|---|---|
| Manufacturer | Mitsubishi Electric |
| File Size | 134.60 KB |
| Description | 2097152-BIT (131072-WORD BY 16-BIT) CMOS STATIC RAM |
| Datasheet |

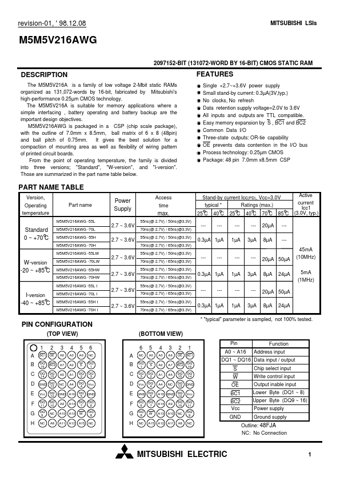

 M5M5V216AWG-55LW Datasheet
|
|
|
Description
The M5M5V216A is a family of low voltage 2-Mbit static RAMs organized as 131,072-words by 16-bit, fabricated by Mitsubishi's high-performance 0.25µm CMOS technology.
Features
- Single +2.7~+3.6V power supply Small stand-by current: 0.3µA(3V,typ. ) No clocks, No refresh Data retention supply voltage=2.0V to 3.6V All inputs and outputs are TTL compatible. Easy memory expansion by S , BC1 and BC2 Common Data I/O Three-state outputs: OR-tie capability OE prevents data contention in the I/O bus Process technology: 0.25µm CMOS Package: 48 pin 7.0mm x8.5mm CSP PART NAME TABLE Version, Operating temperature Part name M5M5V216AWG -55L Power Supply 2.7 ~ 3.6V 2.7 ~ 3.6V Access.
