M5M5T5636GP-20 - 18874368-BIT(524288-WORD BY 36-BIT) NETWORK SRAM

Product Overview

Mitsubishi

📥 Download Datasheet

M5M5T5636GP-20 18874368-BIT(524288-WORD BY 36-BIT) NETWORK SRAM by Mitsubishi - Datasheet Preview — Datasheet preview – M5M5T5636GP-20

Datasheet Details

Part number	M5M5T5636GP-20
Manufacturer	Mitsubishi
File Size	409.29 KB
Description	18874368-BIT(524288-WORD BY 36-BIT) NETWORK SRAM
Datasheet	M5M5T5636GP-20 Datasheet

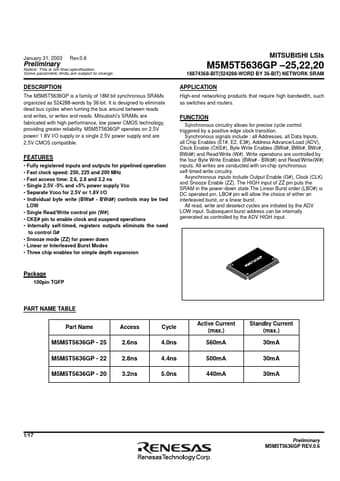

Additional preview pages of the M5M5T5636GP-20 datasheet.

Product details

Description

The M5M5T5636GP is a family of 18M bit synchronous SRAMs organized as 524288-words by 36-bit.

Features

Fully registered inputs and outputs for pipelined operation.
Fast clock speed: 250, 225 and 200 MHz.
Fast access time: 2.6, 2.8 and 3.2 ns.
Single 2.5V -5% and +5% power supply VDD.
Separate VDDQ for 2.5V or 1.8V I/O.
Individual byte write (BWa# - BWd#) controls may be tied LOW.
Single Read/Write control pin (W#).
CKE# pin to enable clock and suspend operations.
Internally self-timed, registers outputs eliminate th.
