M5M51R16AWG-10HI - 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

Description

The M5M51R16AWG is a 1048576-bit CMOS static RAM organized as 65536 words by 16-bits, which are fabricated using high-performance CMOS technology.

The use of CMOS cells and periphery results in a high density and low power static RAM.

Features

  • -10HI, -12HI, -15HI 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM (4) TIMING.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M5M51008FP CMOS Static RAM Mitsubishi Electric
M5M51008P 1M-Bit CMOS Static RAM Mitsubishi Electric
M5M5117FP 16K-Bit CMOS Static RAM Mitsubishi Electric
M5M5256BP 256K-Bit CMOS Sraric RAM Mitsubishi Electric
M5M5256DKP 262144-Bit CMOS Static RAM Mitsubishi Electric

Other Datasheets by Mitsubishi Electric

Part Number Description
M5M51R16AWG-10H 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM
M5M51R16AWG-10L 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM
M5M51R16AWG-10LI 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM
M5M51R16AWG-12H 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM
M5M51R16AWG-12HI 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

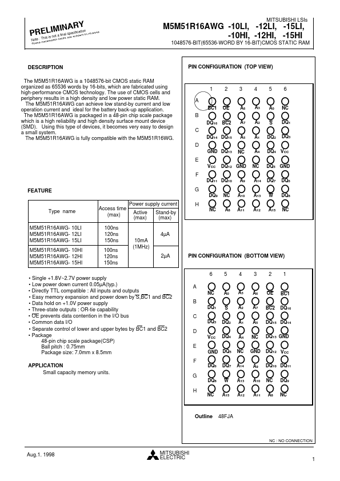

MITSUBISHI LSIs M5M51R16AWG -10LI, -12LI, -15LI, -10HI, -12HI, -15HI 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM DESCRIPTION The M5M51R16AWG is a 1048576-bit CMOS static RAM organized as 65536 words by 16-bits, which are fabricated using high-performance CMOS technology. The use of CMOS cells and periphery results in a high density and low power static RAM. The M5M51R16AWG can achieve low stand-by current and low operation current and ideal for the battery back-up application. The M5M51R16AWG is packaged in a 48-pin chip scale package which is a high reliability and high density surface mount device (SMD). Using this type of devices, it becomes very easy to design a small system. The M5M51R16AWG is fully compatible with the M5M51R16WG.
