M5M5165P-15 - 64K-Bit CMOS Static RAM

Product Overview

Mitsubishi

Datasheet Details

Part number	M5M5165P-15
Manufacturer	Mitsubishi
File Size	359.70 KB
Description	64K-Bit CMOS Static RAM
Datasheet	M5M5165P-15 Datasheet
Note	This datasheet PDF includes multiple part numbers: M5M5165P-15, M5M5165P-70. Please refer to the document for exact specifications by model.

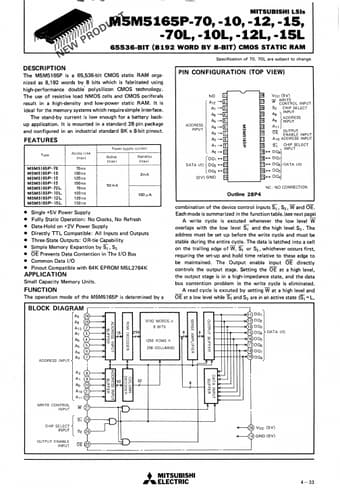

Additional preview pages of the M5M5165P-15 datasheet.

Product details

Description

The M5M5165P is a 65,536-bit CMOS static RAM organized as 8,192 words by 8 bits which is fabricated using high-performance double polysilicon CMOS technology.

Features

Type Access time (max) Power supply current Active (max) Stand-by (max) M5M5165P-70 M5M5165P-l0 M5M5165P-12 M5M5165P-15 M5M5165P-70L M5M5165P-l0L M5M5165P-12L M5M5165P-15L 70ns lOOns 120ns 150ns 70ns lOOns 120ns 150ns 50mA 2mA 100,uA.
Single +5V Power Supply.
Fully Static Operation: No Clocks, No Refresh.
Data-Hold on +2V Power Supp.
