M5M51016BTP-12VL - 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

Product Overview

Mitsubishi

Datasheet Details

Part number	M5M51016BTP-12VL
Manufacturer	Mitsubishi
File Size	75.91 KB
Description	1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM
Datasheet	M5M51016BTP-12VL Datasheet

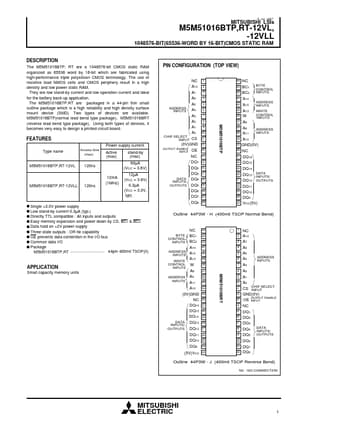

Additional preview pages of the M5M51016BTP-12VL datasheet.

Product details

Description

The M5M51016BTP, RT are a 1048576-bit CMOS static RAM organized as 65536 word by 16-bit which are fabricated using high-performance triple polysilicon CMOS technology.

Features

Power supply current Type name Access time (max) Active (max) stand-by (max) 60µA (VCC = 3.6V) M5M51016BTP,RT-12VL 120ns 12mA (1MHz) M5M51016BTP,RT-12VLL 120ns 12µA (VCC = 3.6V) 0.3µA (VCC = 3.0V, typ) Single +3.0V power supply Low stand-by current 0.3µA (typ. ) Directly TTL compatible : All inputs and outputs Easy memory expansion and power down by CS, BC1 & BC2 Data hold on +2V power supply Three-state outputs : OR-tie capability OE prevents data contention in the I/O bus Common data I/.
