M5M4V64S40ATP-10L - 64M (4-BANK x 1048576-WORD x 16-BIT) Synchronous DRAM

Product Overview

Mitsubishi

Part number	M5M4V64S40ATP-10L
Manufacturer	Mitsubishi
File Size	1.06 MB
Description	64M (4-BANK x 1048576-WORD x 16-BIT) Synchronous DRAM
Datasheet	M5M4V64S40ATP-10L Datasheet
Note	This datasheet PDF includes multiple part numbers: M5M4V64S40ATP-10L, M5M. Please refer to the document for exact specifications by model.

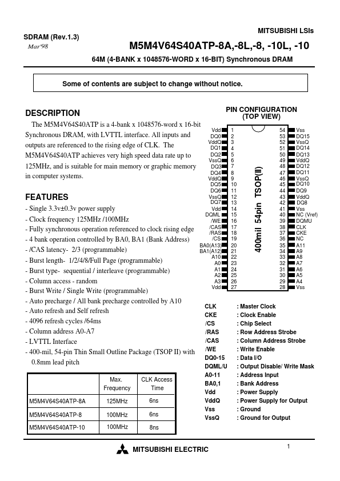

Additional preview pages of the M5M4V64S40ATP-10L datasheet.

The M5M4V64S40ATP is a 4-bank x 1048576-word x 16-bit Synchronous DRAM, with LVTTL interface.

- Single 3.3v±0.3v power supply - Clock frequency 125MHz /100MHz - Fully synchronous operation referenced to clock rising edge - 4 bank operation controlled by BA0, BA1 (Bank Address) - /CAS latency- 2/3 (programmable) - Burst length- 1/2/4/8/Full Page (programmable) - Burst type- sequential / interleave (programmable) - Column access - random - Burst Write / Single Write (programmable) - Auto precharge / All bank precharge controlled by A10 - Auto refresh and Self refresh - 4096 refresh cycles.
