M5M4V16G50DFP-10 - 16M (2-BANK x 262144-WORD x 32-BIT) Synchronous Graphics RAM

Product Overview

Mitsubishi

Part number	M5M4V16G50DFP-10
Manufacturer	Mitsubishi
File Size	167.55 KB
Description	16M (2-BANK x 262144-WORD x 32-BIT) Synchronous Graphics RAM
Datasheet	M5M4V16G50DFP-10 Datasheet

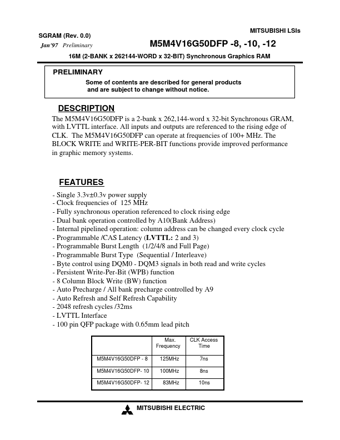

Additional preview pages of the M5M4V16G50DFP-10 datasheet.

The M5M4V16G50DFP is a 2-bank x 262,144-word x 32-bit Synchronous GRAM, with LVTTL interface.

- Single 3.3v±0.3v power supply - Clock frequencies of 125 MHz - Fully synchronous operation referenced to clock rising edge - Dual bank operation controlled by A10(Bank Address) - Internal pipelined operation: column address can be changed every clock cycle - Programmable /CAS Latency (LVTTL: 2 and 3) - Programmable Burst Length (1/2/4/8 and Full Page) - Programmable Burst Type (Sequential / Interleave) - Byte control using DQM0 - DQM3 signals in both read and write cycles - Persistent Write-Pe.
