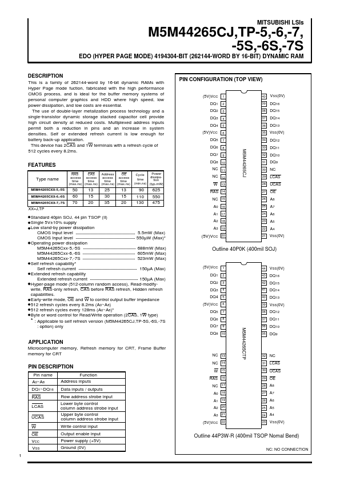

Description
This is a family of 262144-word by 16-bit dynamic RAMs with Hyper Page mode fuction, fabricated with the high performance CMOS process, and is ideal for the buffer memory systems of personal computer graphics and HDD where high speed, low power dissipation, and low costs are essential.
Features
- Type name
M5M44265CXX-5,-5S M5M44265CXX-6,-6S M5M44265CXX-7,-7S RAS CAS access access time time (max. ns) (max. ns) OE Address access access time time (max. ns) (max. ns) Power Cycle dissipatime tion (min. ns) (typ. mW)
DQ8 10 NC 11 NC 12 W 13 RAS 14 NC 15 A0 16 A1 17 A2 18 A3 19
50 60 70
13 15 20
25 30 35
13 15 20
90 110 130
625 550 475
XX=J,TP
Standard 40pin SOJ, 44 pin TSOP (II) Single 5V±10% supply Low stand-by power dissipation CMOS Input level 5.5mW (Max) CMOS Input level 550µW (Max).
M5M44265CTP-7S Datasheet
