M5M44260CTP-5S - FAST PAGE MODE 4194304-BIT (262144-WORD BY 16-BIT) DYNAMIC RAM

Product Overview

Mitsubishi

Datasheet Details

Part number	M5M44260CTP-5S
Manufacturer	Mitsubishi
File Size	283.39 KB
Description	FAST PAGE MODE 4194304-BIT (262144-WORD BY 16-BIT) DYNAMIC RAM
Datasheet	M5M44260CTP-5S Datasheet
Note	This datasheet PDF includes multiple part numbers: M5M44260CTP-5S, M5M. Please refer to the document for exact specifications by model.

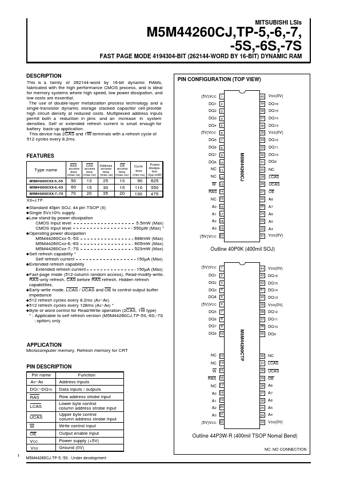

Additional preview pages of the M5M44260CTP-5S datasheet.

Product details

Description

This is a family of 262144-word by 16-bit dynamic RAMs, fabricated with the high performance CMOS process, and is ideal for memory systems where high speed, low power dissipation, and low costs are essential.

Features

Type name M5M44260CXX-5,-5S M5M44260CXX-6,-6S M5M44260CXX-7,-7S RAS CAS access access time time (max. ns) (max. ns) Address OE access access time time (max. ns) (max. ns) Power Cycle dissipatime tion (min. ns) (typ. mW) DQ7 DQ8 10 NC 11 NC 12 W 13 RAS 14 NC 15 A0 16 A1 17 A2 18 A3 19 50 60 70 13 15 20 25 30 35 13 15 20 90 110 130 625 550 475 XX=J,TP Standard 40pin SOJ, 44 pin TSOP (II) Single 5V±10% supply Low stand-by power dissipation CMOS Input level 5.5mW (Max) CMOS Input level 550µW (Ma.
