M5M27C128K - 128K-Bit CMOS Erasable and Electrically Reprogrammable ROM

Mitsubishi

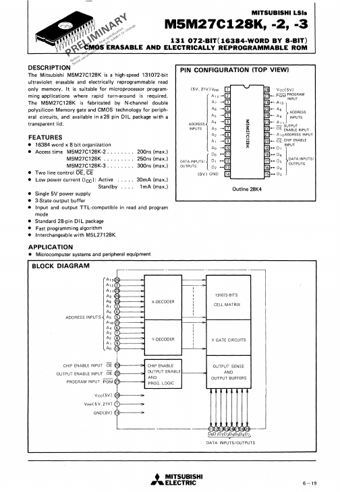

M5M27C128K Datasheet Preview — Preview of M5M27C128K PDF

Datasheet Details

Part number	M5M27C128K
Manufacturer	Mitsubishi
File Size	405.33 KB
Description	128K-Bit CMOS Erasable and Electrically Reprogrammable ROM
Datasheet	M5M27C128K-Mitsubishi.pdf

M5M27C128K Product details

Description

The Mits.ubishi M5M27C12BK is a high-speed 131072-bit ultraviolet erasable and electrically reprogram mabie read only memory_ It is suitable for microprocessor programming applications where rapid turn-around is required_ The M5M27C12BK is fabricated by N-channel double polysilicon Memory gate and CMOS technology for peripheral circuits, and available in a 2B pin D I L package with a transparent lid_

Features

163B4 word x B bit organization.
Access time M5M27C12BK-2 . . _ . . ___ 200ns (max. ) M5M27C12BK ______ . __ 250ns (max. ) M5M27C12BK-3 300ns (max. ).
Two line control OE, CE.
Low power current (Icc): Active 30mA (max. ) Standby 1mA (max. ).
Single 5V power supply.
3-State output buffer.
Input and output TTL-compatible in read and program mode.
Standard 2B-pin D I L package.
Fast.
