M5M2168P-70, M5M2168P 16K-Bit Static RAM

M5M2168P-70 Description

MITSUBISHI LSls MSM2168P-SS, -70 16384-BIT (4096-WORD BY 4-BIT) STATIC RAM .
This is a family of 4096 word by 4-bit static RAMs, fabricated with the high-performance N-channel silicon-gate MOS process and designed for high-spee.

M5M2168P-70 Features

* Fast access time M5M2168P-55 55 ns (max) M5M2168P-70 70 ns (max)
* Low power dissipation Active 500 mW (typ) Standy by 40 mW (typ)
* Power down by S
* Single 5V power supply
* Fully static operation Requires neither external clock nor refreshing

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M5M2168P-70, M5M2168P. Please refer to the document for exact specifications by model.

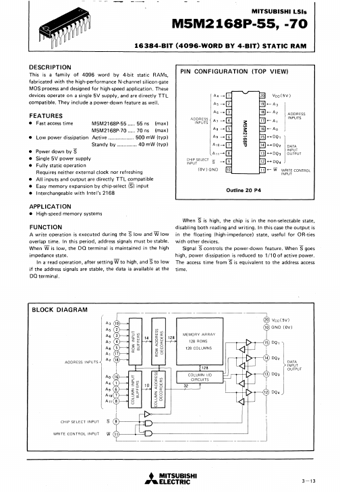

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M5M2168P-70, M5M2168P
Manufacturer
Mitsubishi
File Size
237.10 KB
Datasheet
M5M2168P_MitsubishiElectric.pdf
Description
16K-Bit Static RAM
Note
This datasheet PDF includes multiple part numbers: M5M2168P-70, M5M2168P.
Please refer to the document for exact specifications by model.
