M5L2764K-2, M5L2764K - 64K-Bit Erasable and Electrically Reprogrammable ROM

M5L2764K-2 Description

MITSUBISHI LSls MSL2764K, -2 65536-BIT (8192-WORD BY 8-BIT) ERASABLE AND ELECTRICALLY REPROGRAMMABLE ROM .
The Mitsubishi M5L2764 K is a high-speed 65536-bit ultraviolet erasable and electrically reprogrammable read only memory.

M5L2764K-2 Features

* 8192 Word x 8-bit Organization
* Access Time M5L2764K-2 200 ns (Max) M5L2764K 250 ns (Max)
* Two Line Control OE, CE
* Low Power Current (Icc) Active 150 rnA (Max) Standby 35 rnA (Max)
* Single 5V Power Supply
* 3-State Output Buffer

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M5L2764K-2, M5L2764K. Please refer to the document for exact specifications by model.

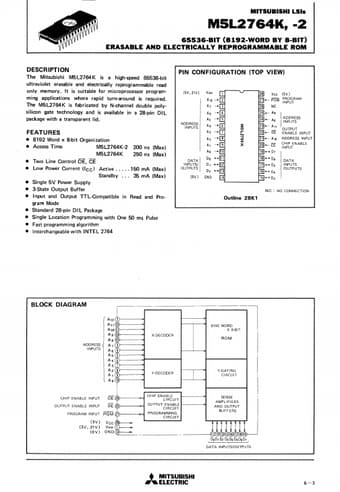

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M5L2764K-2, M5L2764K
Manufacturer
Mitsubishi
File Size
363.83 KB
Datasheet
M5L2764K_MitsubishiElectric.pdf
Description
64K-Bit Erasable and Electrically Reprogrammable ROM
Note
This datasheet PDF includes multiple part numbers: M5L2764K-2, M5L2764K.
Please refer to the document for exact specifications by model.
