M54972FP, M54972 Bi-CMOS 8-BIT SERIAL-INPUT LATCHED DRIVER

Mitsubishi

Description

MITSUBISHI M54972P/FP Bi-CMOS 8-BIT SERIAL-INPUT LATCHED DRIVER .
The M54972 is a semiconductor integrated circuit consisting of 8 stages of CMOS shift registers and latches with serial inputs and serial or parallel.

📥 Download Datasheet

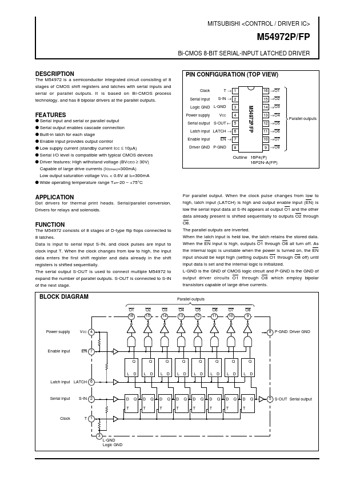

M54972FP Datasheet Preview — This datasheet PDF includes multiple part numbers: M54972FP, M54972. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: M54972FP, M54972
Manufacturer: Mitsubishi
File Size: 950.96 KB
Datasheet: M54972_MitsubishiElectricSemiconductor.pdf
Description: Bi-CMOS 8-BIT SERIAL-INPUT LATCHED DRIVER
Note: This datasheet PDF includes multiple part numbers: M54972FP, M54972.
Please refer to the document for exact specifications by model.

Features

* q Serial input and serial or parallel output q Serial output enables cascade connection q Built-in latch for each stage q Enable input provides output control q Low supply current (standby current ICC ≤ 10µA) q Serial I/O level is compatible with typical CMOS devices q Driver features: High withstan
