M54545L - BI-DIRECTIONAL MOTOR DRIVER

M54545L Description

MITSUBISHI BIPOLAR DIGITAL ICs M54545L BI-DIRECTIONAL MOTOR DRIVER .
The M54545L, BI-DIRECTIONAL MOTOR DRIVER, consists of a full bridge power driver designed for D-C motor control. Wide operating vo.

M54545L Features

* Wide operating voltage range (Vee = 3 -16V)
* Low output saturation voltage
* Integral diodes for transient suppression
* 1.2A output current
* Braking mode input

📥 Download Datasheet

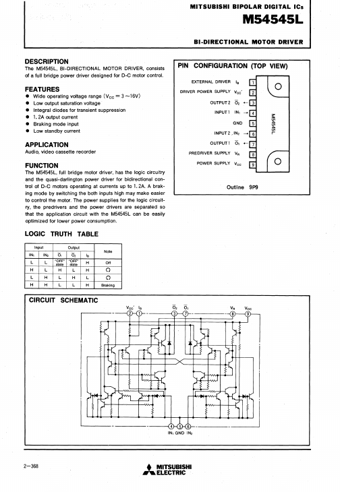

Preview of M54545L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M54545L
Manufacturer
Mitsubishi
File Size
153.58 KB
Datasheet
M54545L-Mitsubishi.pdf
Description
BI-DIRECTIONAL MOTOR DRIVER
