M52760SP - PLL-SPLIT VIF/SIF IC

Product Overview

Mitsubishi

📥 Download Datasheet

M52760SP PLL-SPLIT VIF/SIF IC by Mitsubishi - Datasheet Preview — Datasheet preview – M52760SP

Datasheet Details

Part number	M52760SP
Manufacturer	Mitsubishi
File Size	56.49 KB
Description	PLL-SPLIT VIF/SIF IC
Datasheet	M52760SP Datasheet

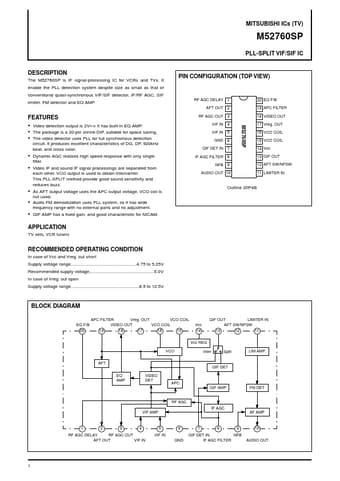

Additional preview pages of the M52760SP datasheet.

Product details

Description

The M52760SP is IF signal-processing IC for VCRs and TVs.

Features

RF AGC OUT VIF IN VIF IN GND QIF DET IN IF AGC FILTER NFB.
Video detection output is 2VP-P. It has built-in EQ AMP. The package is a 20-pin shrink-DIP, suitable for space saving. The video detector uses PLL for full synchronous detection circuit. It produces excellent characteristics of DG, DP, 920kHz beat, and cross color. Dynamic AGC realizes high speed response with only single ﬁlter. Video IF and sound IF signal processings are separated fr.
