M52334FP - PLL-SPLIT VIF/SIF

Product Overview

Mitsubishi

Part number	M52334FP
Manufacturer	Mitsubishi
File Size	84.96 KB
Description	PLL-SPLIT VIF/SIF
Datasheet	M52334FP Datasheet

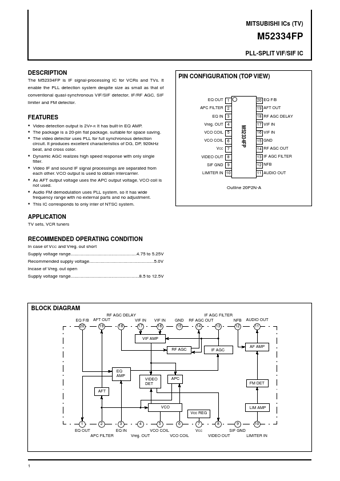

Additional preview pages of the M52334FP datasheet.

The M52334FP is IF signal-processing IC for VCRs and TVs.

EQ IN Vreg. OUT VCO COIL VCO COIL VCC VIDEO OUT SIF GND.
Video detection output is 2VP-P. It has built-in EQ AMP. The package is a 20-pin ﬂat package, suitable for space saving. The video detector uses PLL for full synchronous detection circuit. It produces excellent characteristics of DG, DP, 920kHz beat, and cross color. Dynamic AGC realizes high speed response with only single ﬁlter. Video IF and sound IF signal.
