M5221 - DUAL J-FET INPUT OPERATIONAL AMPLIFIERS

Name: M5221
SKU: M5221-1307009

Mitsubishi

📥 Download Datasheet

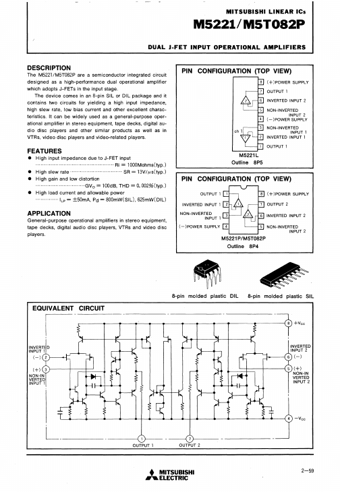

M5221 Datasheet Preview — Preview of M5221 PDF

Datasheet Details

Part number	M5221
Manufacturer	Mitsubishi
File Size	125.89 KB
Description	DUAL J-FET INPUT OPERATIONAL AMPLIFIERS
Datasheet	M5221-Mitsubishi.pdf

M5221 Product details

Description

The M5221/M5T082P are a semiconductor integrated circuit designed as a high-performance dual operational amplifier which adopts J-FETs in the input stage.

Features

High input impedance due to J-FET input Ri = IOOOMohms(typ. ).
High slew rate SR = 13V/,us(typ. ).
High gain and low distortion.
GVo = IOOdB, THO = O. 002%(typ. ).
High load current and allowab.
