M51361P - PLL

Product Overview

Mitsubishi

Datasheet Details

Part number	M51361P
Manufacturer	Mitsubishi
File Size	316.31 KB
Description	PLL
Datasheet	M51361P Datasheet

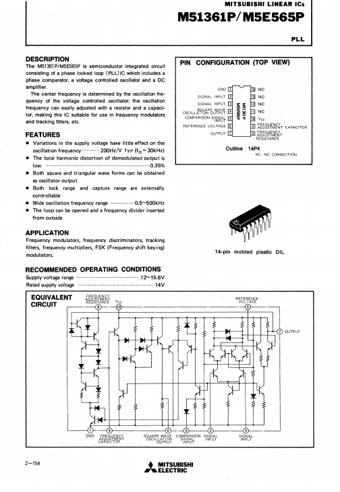

Additional preview pages of the M51361P datasheet.

Product details

Description

The M51361 P/M5E565P is semiconductor integrated circuit consisting of a phase locked loop (PLL) IC which includes a phase comparator, a voltage controlled oscillator and a DC amplifier.

Features

Variations in the supply voltage have little effect on the oscillation frequency.
200Hz/V typ (fo = 30kHz).
The total harmonic distortion of demodulated output is low 0.35%.
Both square and triangular wave forms can be obtained as oscillator output.
Both lock range and capture range are externally controllable.
Wide oscillation frequency range 0.5-500kHz.
The loop can.
