M38859M8-XXXHP, M38857M8-XXXHP 8-BIT CMOS MICROCOMPUTER

Mitsubishi

Description

MITSUBISHI MICROCOMPUTERS 3885 Group SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER GENERAL .
The 3885 group is the 8-bit microcomputer based on the 740 family core technology.

📥 Download Datasheet

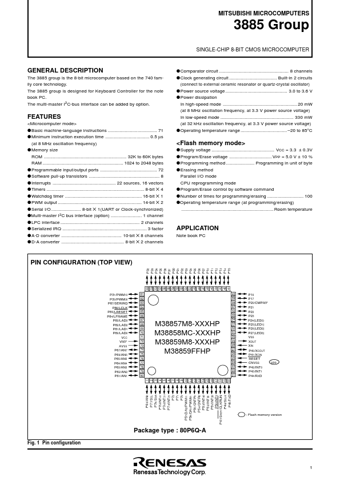

M38859M8-XXXHP Datasheet Preview — This datasheet PDF includes multiple part numbers: M38859M8-XXXHP, M38857M8-XXXHP. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: M38859M8-XXXHP, M38857M8-XXXHP
Manufacturer: Mitsubishi
File Size: 1.32 MB
Datasheet: M38857M8-XXXHP-Mitsubishi.pdf
Description: 8-BIT CMOS MICROCOMPUTER
Note: This datasheet PDF includes multiple part numbers: M38859M8-XXXHP, M38857M8-XXXHP.
Please refer to the document for exact specifications by model.

Features

* qBasic machine-language instructions 71 qMinimum instruction execution time 0.5 µs (at 8 MHz oscillation frequency) qMemory size ROM 32K to 60K bytes RAM 1024 to 2048 bytes qProgrammable input/output ports 72 qSoftware pull-up transistors 8 qInterrupts 22 sources, 16 vect
