M35046-001FP, M35046 SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

M35046-001FP Description

MITSUBISHI MICROCOMPUTERS M35046-XXXSP/FP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS .
The M35046-XXXSP/FP is a character pattern display control IC can display on the liquid crystal display and the plasma display.

M35046-001FP Features

* Screen composition 24 columns × 12 lines
* Number of characters displayed 288 (Max. )
* Character composition 12 × 18 dot matrix
* Characters available 256 characters
* Character sizes available 4 (horizontal) × 4 (vertical)
* Display locations a

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M35046-001FP, M35046. Please refer to the document for exact specifications by model.

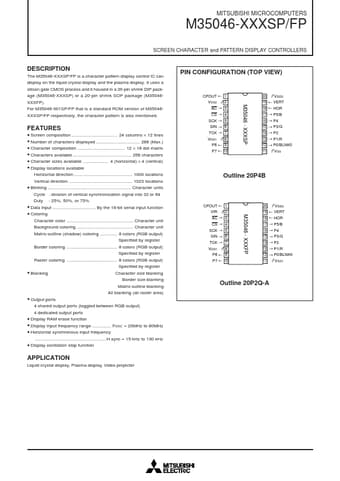

datasheet Preview Page 2 datasheet Preview Page 3
