M30624FGAGP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Download the M30624FGAGP datasheet PDF. This datasheet also covers the M306 variant, as both devices belong to the same single-chip 16-bit cmos microcomputer family and are provided as variant models within a single manufacturer datasheet.

Description

The M16C/62 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP.

Features

  • Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 3K to 20K bytes.
  • Shortest instruction execution time 62.5ns (f(XIN)=16MHZ, VCC=5V) 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version 142.9ns (f(XIN)=7MHZ, VCC=3V, with software one-wait) : One-time PROM version.
  • Supply voltage 4.2 to 5.5V (f(XIN)=16MHZ, without software wait) : Mask ROM, flash memory 5V version 4.5 to 5.5V (f(XIN)=16MHZ, without software wait) : One-tim.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M306-24FG.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
M30624FGAGP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30624FGAFP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30624FGMFP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30624FGMFP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30624FGPFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Renesas Technology

Other Datasheets by Mitsubishi Electric

Part Number Description
M30624FGAFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30624FGFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30624FGGP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30624FGLFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30624FGLGP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Full PDF Text Transcription

Click to expand full text

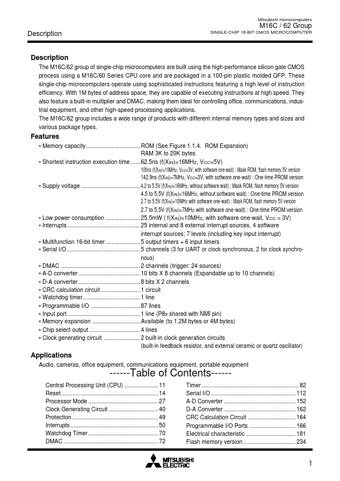

Mitsubishi microcomputers M16C / 62 Group Description SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.
