M30622ECVFP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Download the M30622ECVFP datasheet PDF. This datasheet also covers the M30 variant, as both devices belong to the same single-chip 16-bit cmos microcomputer family and are provided as variant models within a single manufacturer datasheet.

Description

The M16C/62T group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin or a 80-pin plastic molded QFP.

Features

  • Memory capacity M30623M4T-XXXGP : ROM 32K bytes, RAM 3K bytes M30622M8T/M8V-XXXFP,M30623M8T/M8V-XXXGP : ROM 64K bytes, RAM 4K bytes M30622MCT/MCV-XXXFP,M30623MCT/MCV-XXXGP : ROM 128K bytes, RAM 5K bytes M30622ECT/ECV-XXXFP,M30623ECT/ECV-XXXGP : PROM 128K bytes, RAM 5K bytes.
  • Shortest instruction execution time 62.5ns (f(XIN)=16MHZ, VCC=5V).
  • Supply voltage Mask ROM version : 4.2 to 5.5V (f(XIN )=16MHZ, without software wait) One-time PROM version : 4.5 to 5.5V (f(XIN).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M30-622.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
M30622F8PFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Renesas Technology
M30622F8PGP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Renesas Technology
M30622M4A-XXXFP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30622M4A-XXXGP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30622M6P-XXXFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Renesas Technology

Other Datasheets by Mitsubishi Electric

Part Number Description
M30622ECTFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30622 SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30622M4 SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30622MCT SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30622SAGP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

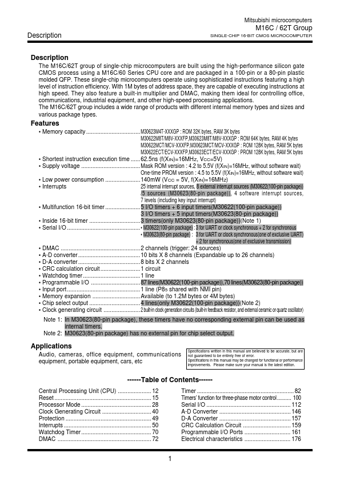

Mitsubishi microcomputers M16C / 62T Group Description Description The M16C/62T group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin or a 80-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications. The M16C/62T group includes a wide range of products with different internal memory types and sizes and various package types.
