M30620MC-336GP, M30 SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Mitsubishi

Description

Mitsubishi microcomputers M16C / 62M Group (Low voltage version) .
SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62M group of single-chip microcomputers are built using the high-performance silicon gate.

📥 Download Datasheet

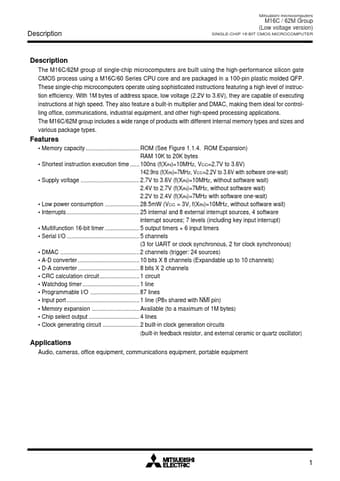

M30620MC-336GP Datasheet Preview — This datasheet PDF includes multiple part numbers: M30620MC-336GP, M30. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: M30620MC-336GP, M30
Manufacturer: Mitsubishi
File Size: 414.18 KB
Datasheet: M30-620MC.pdf
Description: SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
Note: This datasheet PDF includes multiple part numbers: M30620MC-336GP, M30.
Please refer to the document for exact specifications by model.

Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 10K to 20K bytes
* Shortest instruction execution time 100ns (f(XIN)=10MHZ, VCC=2.7V to 3.6V) 142.9ns (f(XIN)=7MHZ, VCC=2.2V to 3.6V with software one-wait)
* Supply voltage 2.7V to 3.6V (f(XIN)=10MHZ, without sof
