M30620M8-A69GP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Download the M30620M8-A69GP datasheet PDF. This datasheet also covers the M30 variant, as both devices belong to the same single-chip 16-bit cmos microcomputer family and are provided as variant models within a single manufacturer datasheet.

General Description

The M16C/62M group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP.

Key Features

  • Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 10K to 20K bytes.
  • Shortest instruction execution time 100ns (f(XIN)=10MHZ, VCC=2.7V to 3.6V) 142.9ns (f(XIN)=7MHZ, VCC=2.2V to 3.6V with software one-wait).
  • Supply voltage 2.7V to 3.6V (f(XIN)=10MHZ, without software wait) 2.4V to 2.7V (f(XIN)=7MHZ, without software wait) 2.2V to 2.4V (f(XIN)=7MHZ with software one-wait).
  • Low power consumption 28.5mW (VCC = 3V, f(XIN)=10MHZ, without software wait).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M30-620MC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
M30620M8A-XXXFP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30620M8A-XXXGP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30620MAA-XXXFP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30620MAA-XXXGP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology
M30620MCA-XXXFP 16-BIT SINGLE-CHIP MICROCOMPUTER Renesas Technology

Other Datasheets by Mitsubishi Electric

Part Number Description
M30620M8-359FP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30620M8A-XXXFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30620M8A-XXXGP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30620MAA-XXXFP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
M30620MAA-XXXGP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

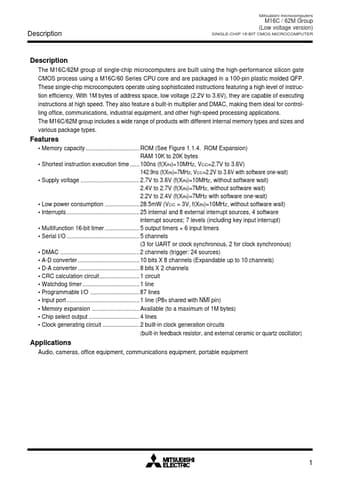

Mitsubishi microcomputers M16C / 62M Group (Low voltage version) Description SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62M group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, low voltage (2.2V to 3.6V), they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.
