CM900DUC-24S Datasheet - Mitsubishi

CM900DUC-24S-Mitsubishi.pdf

CM900DUC-24S Datasheet Preview — Preview of CM900DUC-24S PDF

Datasheet Details

Part number:

CM900DUC-24S

Manufacturer:

Mitsubishi

File Size:

408.35 KB

Description:

Igbt modules.

CM900DUC-24S, IGBT Modules

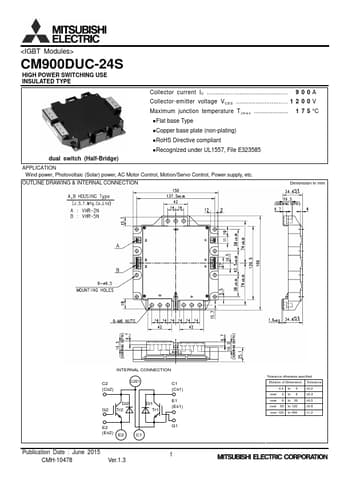

CM900DUC-24S HIGH POWER SWITCHING USE INSULATED TYPE Collector current IC …… 9 0 0 A Collector-emitter voltage VCES … 1 2 0 0 V Maximum junction temperature T j ma x 1 7 5 °C Flat base Type Copper base plate (non-plating) RoHS Directive compliant dual switch (Half-Bridge) Recognized under UL1557, File E323585 APPLICATION Wind power, Photovoltaic (Solar) power, AC Motor Control, Motion/Servo Control, Power supply, etc.

OUTLINE DRAWING & INTERNAL CONNECTI
