CM600DXP-34T - IGBT

Download the CM600DXP-34T datasheet PDF. This datasheet also covers the CM600DX-34T variant, as both devices belong to the same igbt family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CM600DX-34T-Mitsubishi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CM600DU-24F Dual IGBT Module Powerex Power Semiconductors
CM600DU-24F IGBT Module Mitsubishi Electric
CM600DU-24NF IGBT Module Mitsubishi Electric Semiconductor
CM600DU-24NFH IGBT Module Mitsubishi Electric
CM600DU-5F Dual IGBT Module Powerex Power Semiconductors

Other Datasheets by Mitsubishi Electric

Part Number Description
CM600DXP-13T IGBT
CM600DXP-24T IGBT Modules
CM600DXP-24T1 IGBT Modules
CM600DX-13T IGBT
CM600DX-24S1 IGBT

Full PDF Text Transcription

Click to expand full text

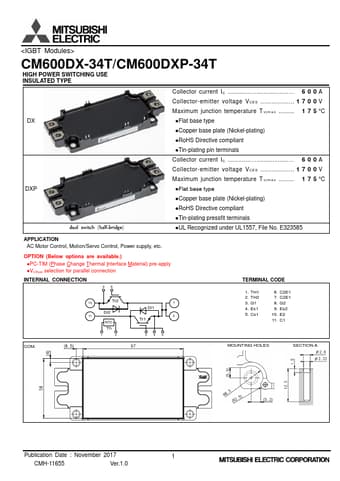

CM600DX-34T/CM600DXP-34T HIGH POWER SWITCHING USE INSULATED TYPE DX DXP dual switch (half-bridge) Collector current IC .............…..................… 6 0 0 A Collector-emitter voltage VCES .................. 1 7 0 0 V Maximum junction temperature T vj m a x ......... 1 7 5 °C ●Flat base type ●Copper base plate (Nickel-plating) ●RoHS Directive compliant ●Tin-plating pin terminals Collector current IC .............…..................… 6 0 0 A Collector-emitter voltage VCES .................. 1 7 0 0 V Maximum junction temperature T vj m a x ......... 1 7 5 °C ●Flat base type ●Copper base plate (Nickel-plating) ●RoHS Directive compliant ●Tin-plating pressfit terminals ●UL Recognized under UL1557, File No.
