CM200RX-13T Datasheet - Mitsubishi

CM200RX-13T-Mitsubishi.pdf

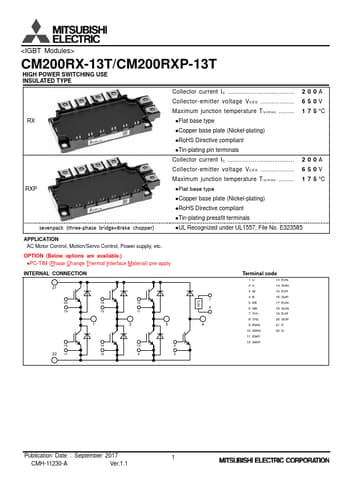

CM200RX-13T Datasheet Preview — Preview of CM200RX-13T PDF

Datasheet Details

Part number:

CM200RX-13T

Manufacturer:

Mitsubishi

File Size:

1.10 MB

Description:

Igbt modules.

CM200RX-13T, IGBT Modules

CM200RX-13T/CM200RXP-13T HIGH POWER SWITCHING USE INSULATED TYPE RX RXP sevenpack (three-phase bridge+Brake chopper) Collector current IC …… 2 0 0 A Collector-emitter voltage VCES 6 5 0 V Maximum junction temperature T vj m a x 1 7 5 °C Flat base type Copper base plate (Nickel-plating) RoHS Directive compliant Tin-plating pin terminals Collector current IC …… 2 0 0 A Collector-emitter voltage VCES 6 5 0 V Maximum junction temperature T vj m a x 1 7 5 °C <
