7540 - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Name: 7540
SKU: 7540-1150433

Mitsubishi

📥 Download Datasheet

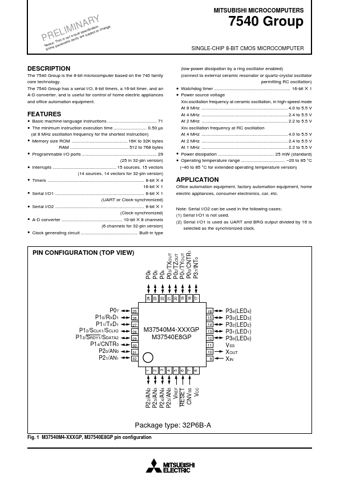

7540 Datasheet Preview — Preview of 7540 PDF

Datasheet Details

Part number	7540
Manufacturer	Mitsubishi
File Size	637.12 KB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	7540-Mitsubishi.pdf

7540 Product details

Description

The 7540 Group is the 8-bit microcomputer based on the 740 family core technology.The 7540 Group has a serial I/O, 8-bit timers, a 16-bit timer, and an A-D converter, and is useful for control of home electric appliances and office automation equipment.

Features

Basic machine-language instructions 71.
The minimum instruction execution time 0.50 µs (at 8 MHz oscillation frequency for the shortest instruction).
Memory size ROM 16K to 32K bytes RAM 512 to 768 bytes.
Programmable I/O ports 29 (25 in 32-pin version).
Interrupts 15 so.
