ML792E32 - (ML7xx32) 10Gbps InGaAsP DFB LASER DIODE

Product Overview

Mitsubishi Electric

Datasheet Details

Part number	ML792E32
Manufacturer	Mitsubishi Electric
File Size	97.58 KB
Description	(ML7xx32) 10Gbps InGaAsP DFB LASER DIODE
Datasheet	ML792E32 Datasheet

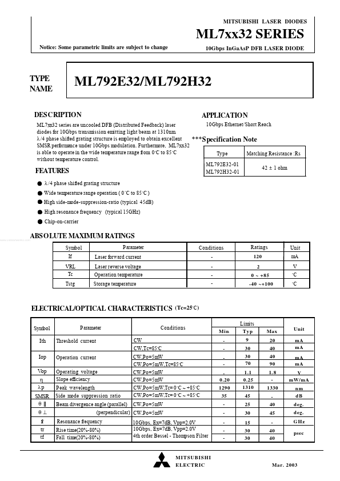

Additional preview pages of the ML792E32 datasheet.

Product details

Description

ML7xx32 series are uncooled DFB (Distributed Feedback) laser diodes for 10Gbps transmission emitting light beam at 1310nm. S pecification Note Type ML792E32-01 ML792H32-01 Matching Resistance :Rs 42 ± 1 ohm

Features

λ /4 phase shifted grating structure Wide temperature range operation ( 0 oC to 85 oC ) High side-mode-suppression-ratio (typical 45dB) High resonance frequency (typical 15GHz) Chip-on-carrier www. DataSheet4U. com.
