ML720K19S - (ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES

Product Overview

Mitsubishi Electric

Part number	ML720K19S
Manufacturer	Mitsubishi Electric
File Size	226.45 KB
Description	(ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES
Datasheet	ML720K19S Datasheet
Note	This datasheet PDF includes multiple part numbers: ML720K19S, ML720J19S. Please refer to the document for exact specifications by model.

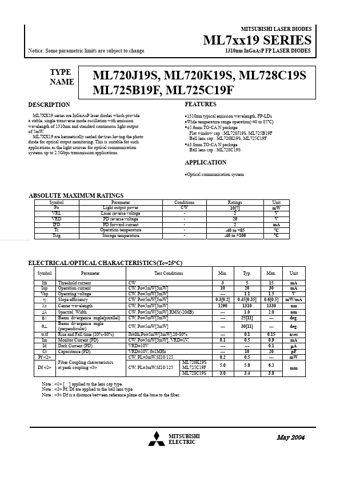

Additional preview pages of the ML720K19S datasheet.

ML720J19S, ML720K19S, ML728C19S ML725B19F, ML725C19F

1310nm typical emission wavelength, FP-LDs.
Wide temperature range operation(-40 to 85ºC).
φ5.6mm TO-CA N package Flat window cap : ML720J19S, ML725B19F Ball lens cap : ML720K19S, ML725C19F.
φ3.8mm TO-CA N package Ball lens cap : ML728C19S ML7XX19 series are InGaAsP laser diodes which provide a stable, single transverse mode oscillation with emission wavelength of 1310nm and standard continuous light output of 5mW. ML7XX19 are hermetically sealed devices having.
