M60006P, M60006FP - 12-bit I/O EXPANDER

Mitsubishi Electric

M60006P Datasheet Preview — This datasheet PDF includes multiple part numbers: M60006P, M60006FP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	M60006P, M60006FP
Manufacturer	Mitsubishi Electric
File Size	101.13 KB
Description	12-bit I/O EXPANDER
Datasheet	M60006FP_MitsubishiElectric.pdf
Note	This datasheet PDF includes multiple part numbers: M60006P, M60006FP. Please refer to the document for exact specifications by model.

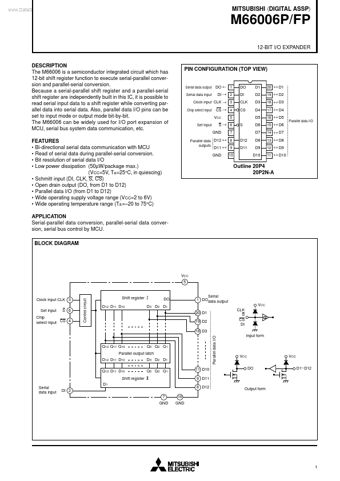

M60006P Product details

Description

The M66006 is a semiconductor integrated circuit which has 12-bit shift register function to execute serial-parallel conversion and parallel-serial conversion.

Features

Bi-directional serial data communication with MCU.
Read of serial data during parallel-serial conversion.
Bit resolution of serial data I/O.
Low power dissipation (50µW/package max. ) (VCC=5V, Ta =25°C, in quiescing).
Schmitt input (DI, CLK, S, CS).
Open drain output (DO, from D1 to D12).
Parallel data I/O (from D1 to D12).
Wide operating supply voltage range (VCC=2 to 6V).
Wide operating temperature range (Ta =.
