CM75TU-34KA Datasheet - Mitsubishi Electric

CM75TU-34KA IGBT Module

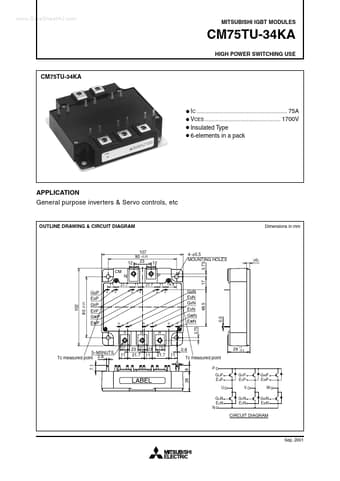

www.DataSheet4U.com MITSUBISHI IGBT MODULES CM75TU-34KA HIGH POWER SWITCHING USE CM75TU-34KA G IC 75A G VCES 1700V G Insulated Type G 6-elements in a pack APPLICATION General purpose inverters & Servo controls, etc OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm CM N 11 21.7 E G P 11 E 21.7 G 11 14.4 E GuP EuP GvP EvP GwP EwP G G E G E G E GuN EuN GvN EvN GwN EwN 3.75 80 ±0.25 102 48.5 17 3.75 107 90 ±0.25 23 12 12 4 φ5.5 MOUNTING HOLES (4) U V W 12.

CM75TU-34KA Datasheet (109.38 KB)

Preview of CM75TU-34KA PDF
CM75TU-34KA Datasheet Preview Page 2 CM75TU-34KA Datasheet Preview Page 3

Datasheet Details

Part number:

CM75TU-34KA

Manufacturer:

Mitsubishi Electric

File Size:

109.38 KB

Description:

Igbt module.
