M61311SP - (M61311SP / M61316SP) I2C BUS CONTROLLED VIDEO PRE-AMP

General Description

M61311SP/M61316SP is Semiconductor Integrated Circuit for CRT Display Monitor.

It includes OSD Blanking, OSD Mixing, Retrace Blanking, Video Detector, Sync Separator, Wide Band Amplifier, Brightness Control.

Key Features

  • Frequency Band Width RGB: OSD: Input RGB: OSD: OSD BLK: Retrace BLK: Clamp Pulse: Output RGB: 5Vp-p (at Brightness less than 2VDC) OSD: 4Vp-p (at Brightness less than 2VDC) Sync OUT: 5Vp-p Video Det OUT: High = 4.2VDC , Low = 0.7VDC 0.7Vp-p (typical) 3.5V --- 5.0V (positive) 3.5V --- 5.0V (positive) 2.5V --- 5.0V (positive) 2.5V --- 5.0V (positive) 200MHz (M61311SP) 150MHz (M61316SP) (4Vp-p at -3dB) 80MHz B IN Sync Sepa OUT GND2 8 Video Det OUT 10 VCC3(5V) 11 OSD BLK IN 12 OSD R IN 13 OSD G IN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M61301SP BUS CONTROLLED 3CH VIDEO PRE-AMP FOR CRT DISPLAY MONITOR Mitsubishi
M61323FP WIDE FREQUENCY BAND ANALOG SWITCH Mitsubishi
M61323SP WIDE FREQUENCY BAND ANALOG SWITCH Mitsubishi
M61006FP DISTANCE DETECTION SIGNAL PROCESSING FOR 3 V SUPPLY VOLTAGE Hitachi Semiconductor
M61006FP DISTANCE DETECTION SIGNAL PROCESSING FOR 3 V SUPPLY VOLTAGE Hitachi

Other Datasheets by Mitsubishi Electric

Part Number Description
M61314SP I2C BUS CONTROLLED VIDEO PRE-AMP
M61316SP (M61311SP / M61316SP) I2C BUS CONTROLLED VIDEO PRE-AMP
M61515FP TONE CONTROL/VOLUME CONTROL
M61516FP SOUND PROCESSOR ICs 7.1ch ELECTRONIC VOLUME
M61518FP AUDIO SIGNAL PROCESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

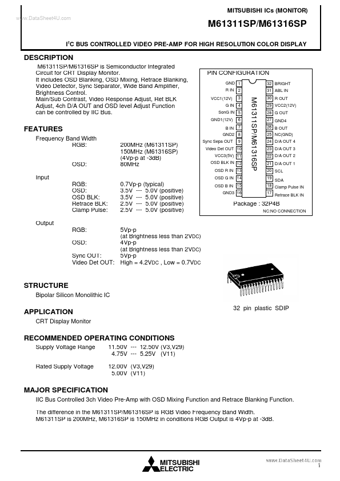

MITSUBISHI ICs (MONITOR) www.DataSheet4U.com M61311SP/M61316SP I C BUS CONTROLLED VIDEO PRE-AMP FOR HIGH RESOLUTION COLOR DISPLAY 2 DESCRIPTION M61311SP/M61316SP is Semiconductor Integrated Circuit for CRT Display Monitor. It includes OSD Blanking, OSD Mixing, Retrace Blanking, Video Detector, Sync Separator, Wide Band Amplifier, Brightness Control. Main/Sub Contrast, Video Response Adjust, Ret BLK Adjust, 4ch D/A OUT and OSD level Adjust Function can be controlled by IIC Bus.
