FS70KMJ-06 Datasheet (Mitsubishi Electric Semiconductor)

FS70KMJ-06, N-Channel Power MOSFET

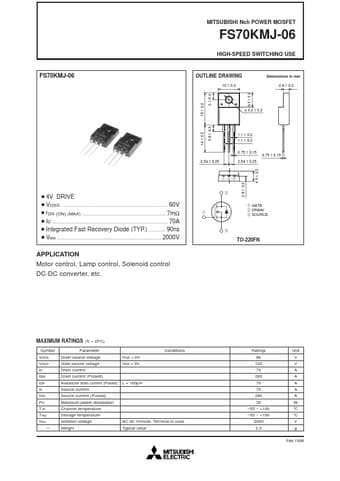

MITSUBISHI Nch POWER MOSFET FS70KMJ-06 HIGH-SPEED SWITCHING USE FS70KMJ-06 OUTLINE DRAWING 10 ± 0.3 6.5 ± 0.3 3 ± 0.3 Dimensions in mm 2.8 ± 0.2 15 ± 0.3 f 3.2 ± 0.2 14 ± 0.5 3.6 ± 0.3 1.1 ± 0.2 1.1 ± 0.2 0.75 ± 0.15 E 0.75 ± 0.15 2.54 ± 0.25 2.54 ± 0.25 4.5 ± 0.2 1 2 3 2.6 ± 0.2 ¡4V DRIVE ¡VDSS 60V ¡rDS (ON) (MAX) 7mΩ ¡ID 70A ¡Integrated Fast Recovery Diode (TYP.) 90ns ¡Viso 2000V w q q GATE w DRAIN e SOURCE e TO-220FN APPLICATION Motor control, Lamp control, Solenoid
