BCR3KM TRIAC

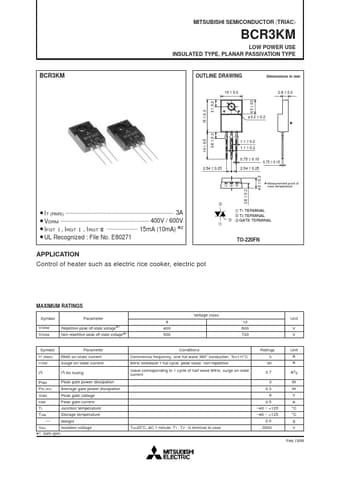

MITSUBISHI SEMICONDUCTOR 〈TRIAC 〉 BCR3KM LOW POWER USE INSULATED TYPE, PLANAR PASSIVATION TYPE BCR3KM OUTLINE DRAWING 10 ± 0.3 6.5 ± 0.3 3 ± 0.3 Dimensions in mm 2.8 ± 0.2 15 ± 0.3 φ 3.2 ± 0.2 14 ± 0.5 3.6 ± 0.3 1.1 ± 0.2 1.1 ± 0.2 0.75 ± 0.15 E 0.75 ± 0.15 2.54 ± 0.25 2.54 ± 0.25 4.5 ± 0.2 2.6 ± 0.2 V Measurement point of case temperature 3A q VDRM 400V / 600V q IFGT ! , IRGT ! , I RGT # 15mA (10mA) V2 q IT (RMS) q UL T1 TERMINAL T2 TERMINAL GATE TERMINAL .
