2SK2973 - RF POWER MOS FET

Mitsubishi Electric Semiconductor

📥 Download Datasheet

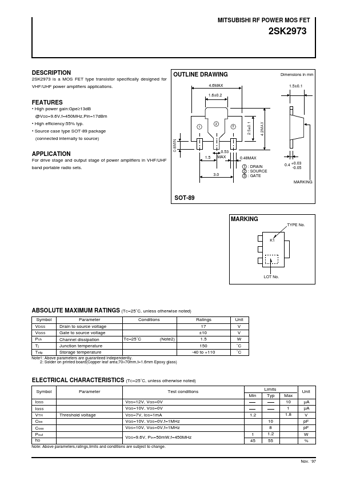

2SK2973 Datasheet Preview — Preview of 2SK2973 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK2973
Manufacturer	Mitsubishi Electric Semiconductor
File Size	33.56 KB
Description	RF POWER MOS FET
Datasheet	2SK2973_MitsubishiElectricSemiconductor.pdf

2SK2973 Product details

Description

2SK2973 is a MOS FET type transistor specifically designed for VHF/UHF power amplifiers applications.

Features

High power gain:Gpe≥13dB @VDD=9.6V,f=450MHz,Pin=17dBm.
High efficiency:55% typ.
Source case type SOT-89 package (connected internally to source) 1 2 3.
