SP8715IGMPAC - 1100MHz Very Low Current Multi-Modulus Divider

Mitel Networks

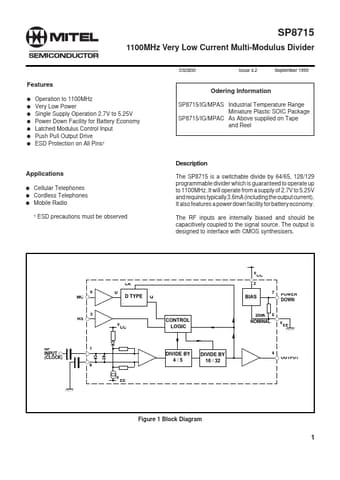

SP8715IGMPAC Datasheet Preview — Preview of SP8715IGMPAC PDF

Datasheet Details

Part number	SP8715IGMPAC
Manufacturer	Mitel Networks
File Size	312.40 KB
Description	1100MHz Very Low Current Multi-Modulus Divider
Datasheet	SP8715IGMPAC_MitelNetworksCorporation.pdf

SP8715IGMPAC Product details

Description

Applications G G G Cellular Telephones Cordless Telephones Mobile Radio † The SP8715 is a switchable divide by 64/65, 128/129 programmable divider which is guaranteed to operate up to 1100MHz.It will operate from a supply of 2.7V to 5.25V and requires typically 3.6mA (including the output current).It also

Features

Odering Information G G G G G G G Operation to 1100MHz Very Low Power Single Supply Operation 2.7V to 5.25V Power Down Facility for Battery Economy Latched Modulus Control Input Push Pull Output Drive ESD Protection on All Pins† SP8715/IG/MPAS Industrial Temperature Range Miniature Plastic SOIC Package SP8715/IG/MPAC As Above supplied on Tape and Reel.
