NWK954GH1N - QUAD FAST ETHERNET REPEATER

Product Overview

Mitel Networks

Datasheet Details

Part number	NWK954GH1N
Manufacturer	Mitel Networks
File Size	176.85 KB
Description	QUAD FAST ETHERNET REPEATER
Datasheet	NWK954GH1N Datasheet

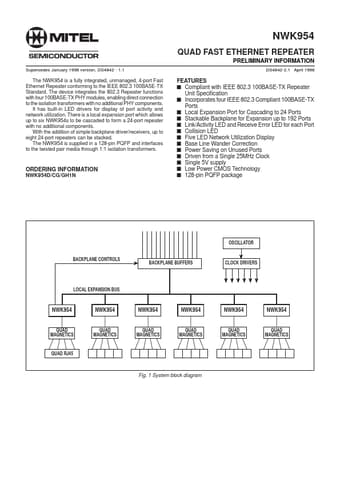

Additional preview pages of the NWK954GH1N datasheet.

Product details

Description

Overvlew The NWK954 is a mixed-signal CMOS device which integrates all of the functions required for an unmanaged 4port 100BASE TX repeater as defined in the IEEE 802.3 Standard.The device incorporates all of the necessary 100BASE-TX PHY functions to allow direct interfacing to a quad 1:1 magnetics module with a modest number of external passive components.The built-in expansion port allows cascading of up to 6 NWK954s to build a 24-port repeater with no additional components and also allows s

Features

s Compliant with IEEE 802.3 100BASE-TX Repeater Unit Specification s Incorporates four IEEE 802.3 Compliant 100BASE-TX Ports s Local Expansion Port for Cascading to 24 Ports s Stackable Backplane for Expansion up to 192 Ports s Link/Activity LED and Receive Error LED for each Port s Collision LED s Five LED Network Utilization Display s Base Line Wander Correction s Power Saving on Unused Ports s Driven from a Single 25MHz Clock s Single 5V supply s Low Power CMOS Technology s 128-pin PQFP packa.
