VP215 - Dual 90MHz 6-Bit Analog to Digital Converter

Mitel Networks Corporation

📥 Download Datasheet

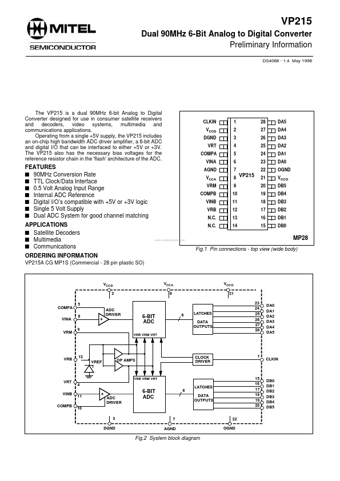

VP215 Datasheet Preview — Preview of VP215 PDF

Datasheet Details

Part number: VP215
Manufacturer: Mitel Networks Corporation
File Size: 135.50 KB
Datasheet: VP215_MitelNetworksCorporation.pdf
Description: Dual 90MHz 6-Bit Analog to Digital Converter

VP215 Product details

Description

- 28 Pin Plastic SO Package Pin 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Name CLKIN VCCD DGND VRT COMPA VINA AGND VCCA VRM COMPB VINB VRB N.C.N.C.DB0 DB1 DB2 DB3 DB4 DB5 VCCO OGND DA0 DA1 DA2 DA3 DA4 DA5 Description TTL clock input Digital voltage supply for ADC’s and input clock Digital ground Reference voltage- ladder top Capacitor compensation - A channel Analog signal input - A channel Analog ground Analog voltage supply for drivers and references Referen

Features

s 90MHz Conversion Rate s TTL Clock/Data Interface s 0.5 Volt Analog Input Range s Internal ADC Reference s Digital I/O’s compatible with +5V or +3V logic s Single 5 Volt Supply s Dual ADC System for good channel matching.
