NJ88C33 - Frequency Synthesiser (I2C BUS Programmable)

Mitel Networks Corporation

NJ88C33 Datasheet Preview — Preview of NJ88C33 PDF

Datasheet Details

Part number	NJ88C33
Manufacturer	Mitel Networks Corporation
File Size	155.05 KB
Description	Frequency Synthesiser (I2C BUS Programmable)
Datasheet	NJ88C33_MitelNetworksCorporation.pdf

NJ88C33 Product details

Description

8 9 10 11 12 13 FI GND2 FVN GND1 PD C 14 LD OPERATING RANGE Test conditions (unless otherwise stated): PLL locked, RI = 10MHz Characteristic Supply voltage Ambient temperature Supply current Single modulus Symbol VDD Tamb IDD IDD 2.5 -40 Value Min.Typ.Max.5 5.5 +85 3.0 V °C mA FI = 50MHz, VFI = 150mVrms, N,R > 1000 without voltage doubler, VDD = 5V, Tamb = 25°C FI = 10MHz, VFI = 500mVrms, N,R > 1000 without voltage doubler, VDD = 5V, Tamb = 25°C Unit Conditions 2.1 Dual modulus 2 3.0

Features

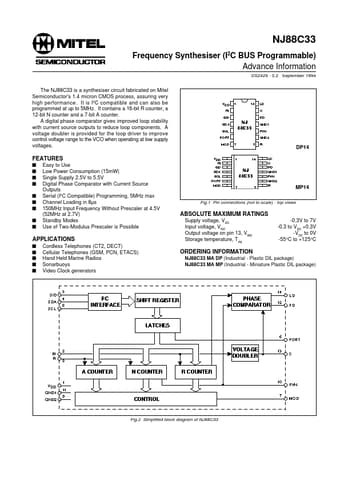

s s s s s s s s s Easy to Use Low Power Consumption (15mW) Single Supply 2.5V to 5.5V Digital Phase Comparator with Current Source Outputs Serial (I2C Compatible) Programming, 5MHz max Channel Loading in 8µs 150MHz Input Frequency Without Prescaler at 4.5V (52MHz at 2.7V) Standby Modes Use of Two-Modulus Prescaler is Possible MP14 Fig.1 Pin connections (not to scale) - top views.
