A9M12.2-1200AL Datasheet (Mirrorcle) - Dual-Axis Quasi-static MEMS Mirror

A9M12.2-1200AL, Dual-Axis Quasi-static MEMS Mirror

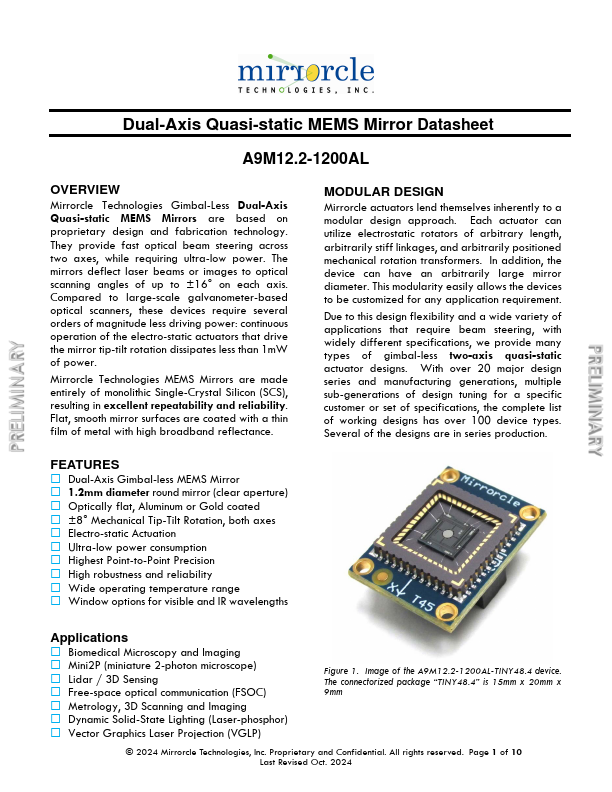

PRELIMINARY PRELIMINARY Dual-Axis Quasi-static MEMS Mirror Datasheet A9M12.2-1200AL OVERVIEW Mirrorcle Technologies Gimbal-Less Dual-Axis Quasi-static MEMS Mirrors are based on proprietary design and fabrication technology.

They provide fast optical beam steering across two axes, while requiring ultra-low power.

The mirrors deflect laser beams or images to optical scanning angles of up to ±16° on each axis.

Compared to large-scale galvanometer-based optical scanners, these devices require se

A9M12.2-1200AL Features

*  Dual-Axis Gimbal-less MEMS Mirror  1.2mm diameter round mirror (clear aperture)  Optically flat, Aluminum or Gold coated  ±8° Mechanical Tip-Tilt Rotation, both axes  Electro-static Actuation  Ultra-low power consumption  Highest Point-to-Point Precision  High robustness and reliability  W
